ROTOR DISC » RN1304V
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -252.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230

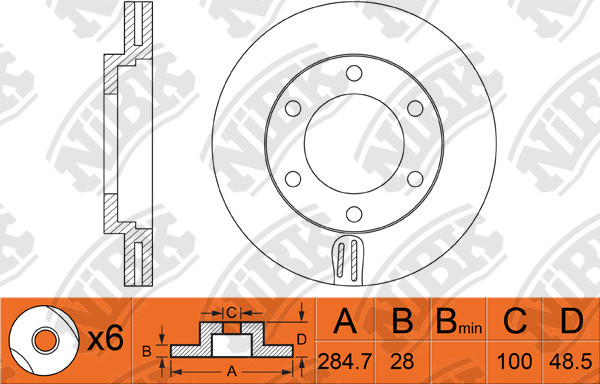

Specification
Type
Vented
Disc Thickness (Max)
28
Num. of holes
6
Height
48.5
Centering Diameter
100
Front/Rear
Front
Pitch Circle Ø
127
Outter Ø
285
Drum Ø:
154
Hole Ø:
10.6
Structure Material
G3000
Cross Reference
TOYOTA
43512-26130
TOYOTA
43512-26180
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.95~05.02 | 3000 | 1KZ-TE | KCH16W | RN1304V | PN1237 | RN1633VDN1252 | PN1363FN2330 | FN0567 |
| 05.97~05.02 | 3400 | 5VZ-FE | VCH16W | RN1304V | PN1237 | RN1633V | PN1363 | FN0567 |
| 07.99~05.02 | 3400 | 5VZ-FE | VCH28K | RN1304V | PN1237 | DN1252 | FN2330 |
| 01.90~12.95 | 2400 | 2L | LH118L | RN1304V | PN1237 | DN1214 | FN2305 | |
| 03.97~08.01 | 2400 | 2L | LXH22 | RN1266VRN1304V | PN1237 | FN2330 | ||
| 08.95~08.01 | 2400 | 2L | LXH28 | RN1266VRN1304V | PN1237 | FN2330 | ||
| 08.95~08.01 | 2400 | 2L-T | LXH22 | RN1266VRN1304V | PN1237 | FN2330 | ||
| 08.95~08.01 | 2400 | 2L-T | LXH28 | RN1266VRN1304V | PN1237 | FN2330 | ||
| 08.95~08.01 | 2400 | 2RZ-E | LXH22 | RN1266VRN1304V | PN1237 | FN2330 | ||
| 08.01~11.11 | 2500 | 2KD-FTV | KLH12L | RN1304V | PN1237 | FN2330 | ||
| 08.01~11.11 | 2500 | 2KD-FTV | KLH18 | RN1304V | PN1237 | DN1252 | FN2330 | |
| 08.01~08.10 | 2500 | 2KD-FTV | KLH28 | RN1304V | PN1237 | DN1252 | FN2330 | |
| 01.96~06.99 | 2700 | RCH19 | RN1304V | PN1237 | FN2330 | |||
| 04.96~06.99 | 2700 | 3RZ-FE | RCH23L | RN1304V | PN1237 | FN2330 | ||
| 04.98~05.06 | 2700 | 3RZ-FE | RCH29L | RN1304V | PN1237 | FN2330 | ||
| 08.89~07.99 | 2800 | 3L | LH119V | RN1304V | PN1237 | DN1214 | FN2305 | |
| 08.89~08.04 | 3000 | 1KZ-TE | KZH138V | RN1304V | PN1237 | DN1253DN1214 | FN2305 | |
| 04.95~08.04 | 3000 | 5L-E | LH178V | RN1304V | PN1237 | DN1253 | FN2305 |
| 08.89~08.99 | 2800 | 3L | LH109V | RN1304V | PN1237 | DN1214DN1253 | FN2305 | |
| 08.93~08.98 | 2800 | 3L | LH129V | RN1304V | PN1237 | DN1214 | FN2305 | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH106 | RN1304V | PN1237 | DN1214 | FN2305 | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH116G | RN1304V | PN1237 | DN1253DN1214 | FN2305 | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH120G | RN1478VRN1304V | PN1237PN1516 | DN1209 | FN2330FN2305 | |
| 08.93~08.99 | 3000 | 1KZ-TE | KZH126G | RN1304V | PN1237 | DN1214DN1253 | FN2305 | |
| 04.95~01.05 | 3000 | 5L-E | LH168V | RN1304V | PN1237 | DN1253 | FN2305 |
