ROTOR DISC » RN1399V
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -248.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230

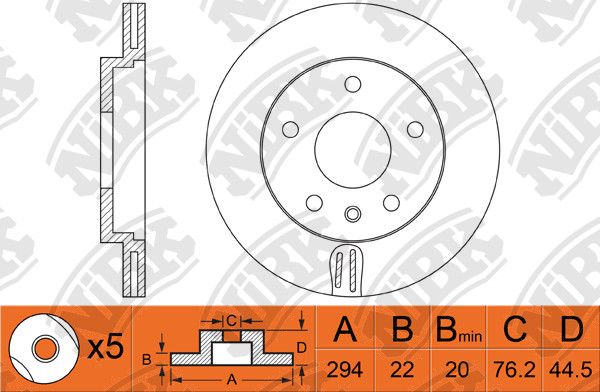

Specification
Type
Vented
Disc Thickness (Max)
22
Num. of holes
5
Height
44.2
Centering Diameter
76.2
Front/Rear
Rear
Pitch Circle Ø
120
Outter Ø
294
Drum Ø:
155
Disc Thickness (Min)
19.5
Structure Material
G3000
Hole Ø:
16.6
Cross Reference
BENDIX
562262B
VAG
7E0 615 601 D
VAG
7H0 615 601 B
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.09~08.15 | 2000 | CCHA | 7E__3_ | RN1316V | PN0353W | RN1399V | PN0330W | |
| 09.09~08.15 | 2000 | CFCA | 7E__4_ | RN1740V | PN33001W | RN1399V | PN0330W | |
| 02.21~ | 2000 | DMZA | 7H_ | RN1740V | PN33016W | RN1399V | PN0330W |
| 09.02~12.09 | 1900 | AXB | 7HJ SHUTTLE EU | RN1316V | PN0353W | RN1399V | PN0330W | |
| 04.03~12.09 | 1900 | AXB | 7H_142 VAN | RN1316V | PN0353W | RN1399V | PN0330W | |
| 01.06~12.09 | 1900 | BRS | T5 | RN1316VRN1740V | PN0353W | RN2499VRN1399V | PN0330WPN0611W | FN0589 |
| 09.09~08.15 | 2000 | CAAB | 7E_122 | RN1316V | PN0353W | RN1399V | PN0330W | |
| 08.18~12.19 | 2000 | CXEC | SG__M_ | RN1740V | PN33001W | RN1399V | PN0330W | |
| 10.19~ | 2000 | CXGD | 7H_ | RN1316V | PN33015W | RN1399V | PN0330W | |
| 04.15~12.19 | 2000 | CXHA | SGA_ | RN1316V | PN0353W | RN1399V | PN0330W | |
| 07.19~ | 2000 | CXHA | SHA_ | RN1316V | PN33015W | RN1399V | PN0330W |
