ROTOR DISC » RN21001V
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -517.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230

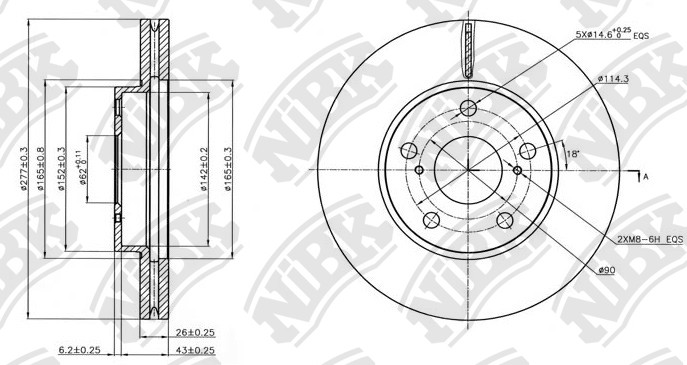

Specification
Type
Vented
Front/Rear
Front
Outter Ø
277
Num. of holes
5
Disc Thickness (Max)
26
Height
49.5
Centering Diameter
62
Pitch Circle Ø
114.3
Drum Ø:
142
Disc Thickness (Min)
24
Structure Material
G3000
Cross Reference
TOYOTA
43512-02330
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.12~05.15 | 1300 | 1NR-FE | NRE180 | RN21001V | PN21001 | RN1352 | PN1835 | |
| 10.12~11.18 | 1400 | 1ND-TV | NDE180L | RN21001V | PN21001 | RN1352 | PN1835 | |
| 10.12~11.18 | 1400 | 1ND-TV | NDE180R | RN21001V | PN21001 | RN1352 | PN1835 | |
| 05.15~ | 1600 | 1WW | WWE185 | RN21001V | PN21001 | RN1352 | PN1835 | |
| 01.13~ | 1600 | 1ZR-FAE | ZRE181 | RN21001V | PN21001 | RN1352 | PN1835 | |
| 10.12~05.15 | 1600 | 1ZR-FAE | ZRE185 | RN21001V | PN21001 | RN1352 | PN1835 | |
| 10.12~ | 1600 | 1ZR-FAE | ZRE185L | RN21001V | PN21001 | RN1352 | PN1835 | |
| 10.12~ | 1600 | 1ZR-FAE | ZRE185R | RN21001V | PN21001 | RN1352 | PN1835 |
| 06.13~12.19 | 1300 | 1NR-FE | NRE180 | RN21001V | PN21001 | RN1352 | PN1835 | |
| 06.13~08.18 | 1300 | 1NR-FE | NRE180L | RN21001V | PN21001 | RN1352 | PN1835 | |
| 06.13~01.19 | 1300 | 1NR-FE | NRE180L | RN21001V | PN21001 | RN1352 | PN1835 | |
| 06.13~12.19 | 1400 | 1ND-TV | NDE180 | RN21001V | PN21001 | RN1352 | PN1835 | |
| 06.13~01.19 | 1600 | 1ZR-FE | ZRE181L | RN1238VRN21001V | PN1524PN21001 | RN1239RN1352 | PN1519PN1835 | |
| 01.13~ | 1600 | 1ZR-FE | ZRE181R | RN21001V | PN21001 | RN1352 | PN1835 | |
| 06.13~ | 1800 | 2ZR-FE | ZRE182L | RN21001V | PN21001 | RN1352 | PN1835 |
