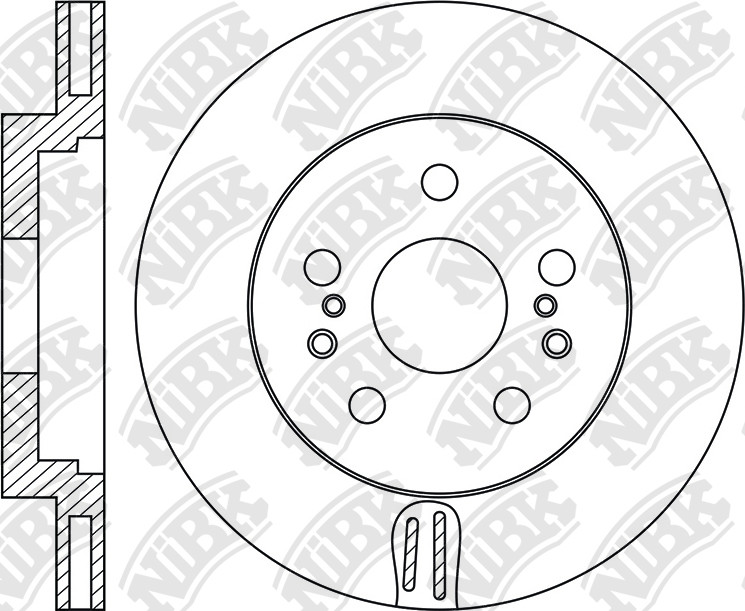

ROTOR DISC » RN1692V
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -488.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230
Specification
Type
Vented
Outter Ø
280
Disc Thickness (Max)
22
Centering Diameter
62
Num. of holes
5
Height
47
Pitch Circle Ø
114.3
Front/Rear
Front
Drum Ø:
146.6
Hole Ø:
12.5
Disc Thickness (Min)
20
Structure Material
G3000
Cross Reference
SUZUKI
55311-61M00
SUZUKI
55311-61M10
SUZUKI
55311-61M11
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.16~ | 1000 | K10C | AKK310# | RN1692V | PN9809 | RN1693 | PN9808 | |
| 08.16~ | 1400 | K14C | AKK414# | RN1692V | PN9809 | RN1693 | PN9808 | |
| 08.13~ | 1600 | D16AA | YB82S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~ | 1600 | M16A | JYB22S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 01.16~ | 1600 | M16A | YA22S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~ | 1600 | M16A | YA22S RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~01.16 | 1600 | M16A | YB22S RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 01.16~ | 1600 | M16A | YB22S RHD | RN1692V | PN9809 | RN1693 | PN9808 |
| 02.18~ | 1000 | K10C-T | APK310 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1400 | K14C | APK414 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.18~ | 1400 | K14C | APK414-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1400 | K14C | APK414-3 RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1400 | K14D | APK414-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1600 | D16AA | APK416D | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1600 | M16A | APK416 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.18~ | 1600 | M16A | APK416-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1600 | M16A | APK416-3 RHD | RN1692V | PN9809 | RN1693 | PN9808 |
