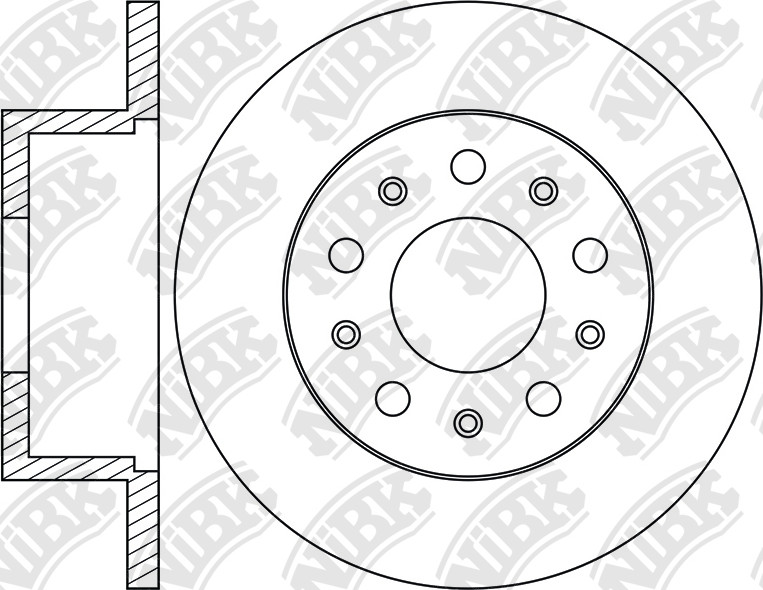

ROTOR DISC » RN1848
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -479.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -149.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230
Specification
Type
Solid
Outter Ø
300
Num. of holes
5
Disc Thickness (Max)
16
Height
80
Centering Diameter
79
Pitch Circle Ø
130
Front/Rear
Rear
Disc Thickness (Min)
14.2
Drum Ø:
172
Structure Material
G3000
Cross Reference
CITROEN
4249.K6
CITROEN
424941
CITROEN
424942
FIAT
51740250
FIAT
51749555
Peugeot / Citroen
16 078 806 80
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.94~03.02 | 1900 | XUD9AU | RN1065VRN1067V | PN0290W | RN1848 | FN0545 | ||
| 02.94~01.02 | 1900 | XUD9TE | RN1065VRN1067V | PN0290W | RN1848 | FN0545 | ||
| 02.94~03.02 | 1900 | XUD9UTF | RN1065VRN1067V | PN0290W | RN1848 | FN0545 | ||
| 02.02~06.06 | 2000 | DW10UTD | RN1065VRN1067V | PN0219WPN0220W | RN1848 | FN0585 | ||
| 02.94~01.02 | 2000 | XU10J2 | RN1065VRN1067V | PN0290WPN0218W | RN1848 | FN0545FN0546 | ||
| 02.02~06.06 | 2000 | XU10J2 | RN1065VRN1067V | PN0219WPN0220W | RN1848 | FN0585PN0331 | ||
| 02.02~06.06 | 2000 | XU10J2GPL | RN1065VRN1067V | PN0220W | RN1848 | FN0585 | ||
| 02.02~06.06 | 2200 | DW12TED | ZARMX | RN1065VRN1067V | PN0219W | RN1848 | FN0585 | |
| 02.02~06.06 | 2200 | DW12TED | ZBRMA | RN1065VRN1067V | PN0219W | RN1848 | FN0585 | |
| 02.94~03.02 | 2500 | DJ5 | RN1065VRN1067V | PN0218W | RN1848 | FN0546 | ||
| 02.94~03.02 | 2500 | DJ5T | RN1065VRN1067V | PN0290WPN0218W | RN1848 | FN0545FN0546 | ||
| 02.94~01.02 | 2500 | DJ5TED | RN1065VRN1067V | PN0290WPN0218W | RN1848 | FN0545FN0546 | ||
| 10.00~01.02 | 2800 | 814043S | RN1065VRN1067V | PN0198PN0218W | RN1848 | FN0545FN0546 | ||
| 02.02~06.06 | 2800 | F28TDCR | RN1065VRN1067V | PN0219WPN0220W | RN1848 | FN0585PN0331 |
| 03.94~03.02 | 1900 | 230 A4.000 | 23# | RN1065VRN1067V | PN0290WPN0198PN0219W | RN1848 | FN0545PN0331 | |
| 04.98~03.02 | 1900 | DHX | 23# | RN1065VRN1067V | PN0198PN0219W | RN1848 | FN0545PN0331 | |
| 03.94~03.02 | 2000 | RFW | 23# | RN1065VRN1067V | PN0198PN0219WPN0290WPN0218W | RN1848 | FN0545PN0331FN0546 | |
| 03.94~03.02 | 2500 | 8140.47 | 23# | RN1065VRN1067V | PN0290W | RN1848 | FN0545 | |
| 10.97~03.02 | 2800 | 8140.43 | 23# | RN1065VRN1067V | PN0198PN0219WPN0290W | RN1848 | FN0545PN0331 |
