ROTOR DISC » RN2002
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -133.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230

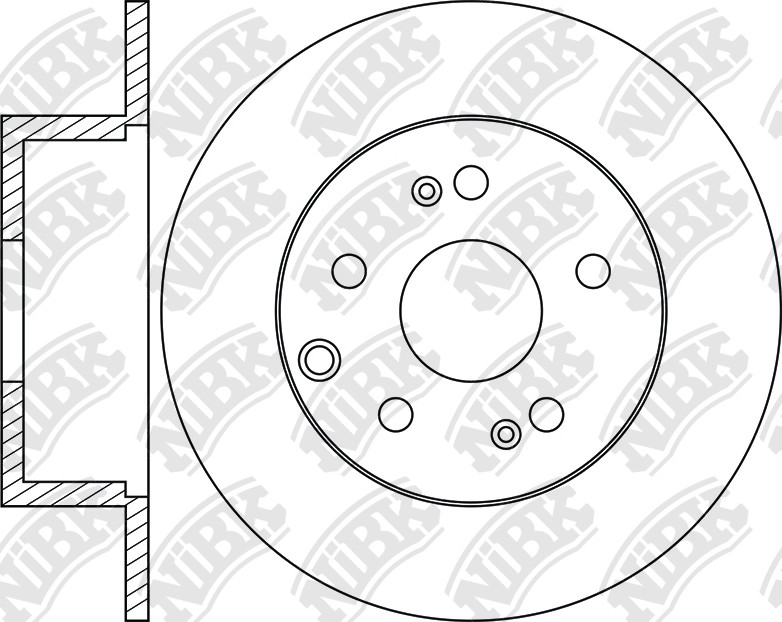

Specification
Type
Solid
Outter Ø
302
Num. of holes
5
Disc Thickness (Max)
11
Height
71.5
Centering Diameter
69
Pitch Circle Ø
114.3
Drum Ø:
190
Front/Rear
Rear
Disc Thickness (Min)
9.4
Structure Material
G3000
Cross Reference
HYUNDAI
58411-2B000
HYUNDAI / KIA
58411-0W000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.06~07.09 | 2200 | D4EB | CM | RN1349V | PN0446 | RN2002 | PN0415PN0447 | FN0664 |
| 10.05~09.06 | 2200 | D4EB | PA06 LHD | RN2287V | PN0446 | RN2002 | PN0447 | FN11005 |
| 09.06~07.09 | 2200 | D4EB | PCM 06 LHD | RN2287V | PN0446 | RN2002 | PN0447 | FN11005 |
| 09.06~01.10 | 2700 | G6EA | CM GL | RN1349VRN2287V | PN0446 | RN2002 | PN0447 | FN11005 |
| 09.06~01.10 | 2700 | G6EA | CM LHD RU | RN1349V | PN0446 | RN2002 | PN0447 | FN11005 |
| 12.05~01.10 | 2700 | G6EA | CM SG RHD | RN2287VRN1349V | PN0446 | RN2002 | PN0447 | FN11005 |
| 01.06~08.09 | 2700 | G6EA | CM US | RN2287V | PN0446 | RN2002 | PN0447 | FN11005 |
| 04.06~07.09 | 3300 | G6DB | CMA06 | RN2287V | PN0446 | RN2002 | PN0447 | FN11005 |
| 04.06~07.09 | 3300 | G6DB | PCM06 | RN2287V | PN0446 | RN2002 | PN0447 | FN11005 |
