ROTOR DISC » RN1199V
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -256.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230

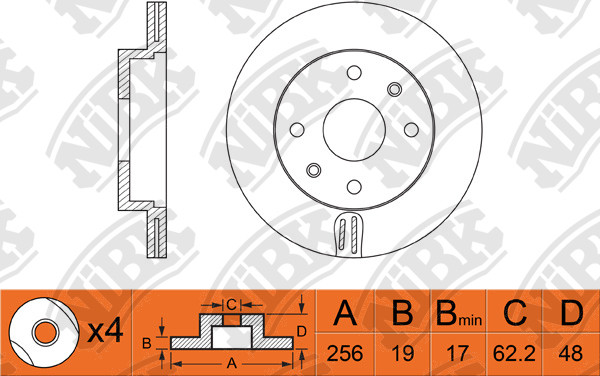

Specification
Type
Vented
Disc Thickness (Max)
19
Num. of holes
4
Height
48
Centering Diameter
62.2
Pitch Circle Ø
100
Front/Rear
Front
Outter Ø
256
Drum Ø:
126
Disc Thickness (Min)
17
Structure Material
G3000
Cross Reference
BENDIX EUR
562427B
HYUNDAI
51712-1C050
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.06~09.11 | 1100 | G4HG | 5DR HB VTN | RN1199VRN1779V | PN0091 | DN1507DN1508 | FN0610FN0609 | |
| 07.02~12.06 | 1100 | G4HG | BT51 5DR RHD | RN1199VRN1779V | PN0091 | DN1507 | FN0610 | |
| 11.06~09.11 | 1100 | G4HG | BT51 5DR RHD | RN1199VRN1779V | PN0091 | DN1507 | FN0610 | |
| 07.02~10.06 | 1300 | G4EA | BT31 3DR LHD | RN1199V | PN0091 | DN1508 | FN0609 | |
| 09.02~10.05 | 1500 | D3EA | PA02 | RN1199V | PN0091 | DN1508 | FN0609 | |
| 10.05~09.11 | 1500 | D4FA | BT51 5DR | RN1199V | PN0091 | DN1508RN1778 | FN0609PN0539 | FN0661 |
| 09.02~10.06 | 1600 | G4ED | BU31 3DR RHD | RN1199V | PN0091 | DN1508 | FN0609 | |
| 10.06~09.11 | 1600 | G4ED | BU31 3DR RHD | RN1199V | PN0091 | DN1508 | FN0609 | |
| 09.02~10.05 | 1600 | G4ED | BU51 | RN1199V | PN0091 | DN1508 | FN0609 |
