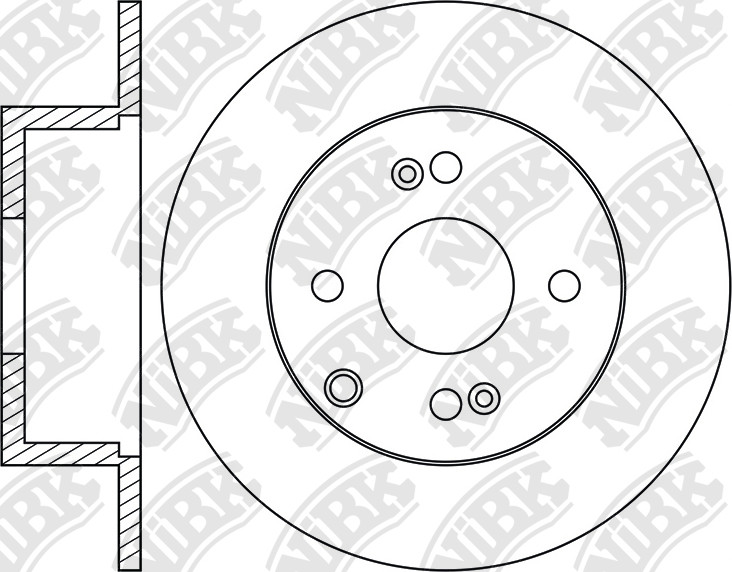

ROTOR DISC » RN1778
A PHP Error was encountered
Severity: 8192
Message: Implicit conversion from float -158.5 to int loses precision
Filename: libraries/Image_lib.php
Line Number: 1230
Specification
Type
Solid
Outter Ø
262
Num. of holes
4
Disc Thickness (Max)
10
Height
63.8
Centering Diameter
62.5
Pitch Circle Ø
100
Disc Thickness (Min)
9
Drum Ø:
168
Hole Ø:
12.5
Front/Rear
Rear
Structure Material
G3000
Cross Reference
HYUNDAI
58411-1C800
KIA
58411-1C800
KIA
58411-1G300
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.06~08.11 | 1400 | G4EE | CN31 RHD 3DR | RN1370V | PN0435 | RN1778DN1447 | FN0617PN0436 | FN0680 |
| 03.06~08.11 | 1400 | G4EE | MC | RN1370V | PN0435 | RN1778DN1447 | FN0617PN0436 | |
| 03.06~08.11 | 1500 | D4FA | MC | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0609 | |
| 03.06~08.11 | 1600 | G4ED | CM41 SDN LHD | RN1370V | PN0435 | RN1778 | PN0436 | |
| 03.06~08.11 | 1600 | G4ED | CN41 SDN RHD | RN1370V | PN0435 | RN1778DN1447 | FN0617PN0436 | FN0680 |
| 03.06~08.11 | 1500 | D4FA | MC | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | |
| 03.06~08.11 | 1600 | G4ED | HB LHD | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 |
| 06.12~12.14 | 1100 | D3FA | PBT12 5DR LHD | RN1370V | PN0435 | RN1778 | PN0436 | FN0661 |
| 01.08~06.12 | 1400 | G4FA | PB08 5DR LHD | RN1370V | PN0435 | RN1778 | PN0436 | FN0661 |
| 01.08~06.12 | 1400 | G4FA | PB08 5DR RHD | RN1370V | PN0435 | RN1778 | PN0436 | FN0661 |
| 06.12~12.14 | 1400 | G4FA | PB12 5DR | RN1370V | PN0435 | RN1778 | PN0436 | FN0661 |
| 06.12~12.14 | 1400 | G4FA | PB12 5DR NLHBB | RN1370V | PN0435 | RN1778 | PN0436 | FN0661 |
| 11.05~09.11 | 1400 | G4EE | DE22 | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | FN0680 |
| 03.05~01.12 | 1400 | G4EE | DF41 SDN LHD | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | |
| 09.06~10.10 | 1400 | G4EE | DH41 SDN RHD | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | |
| 11.05~09.11 | 1600 | G4ED | DE22 | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | FN0680 |
